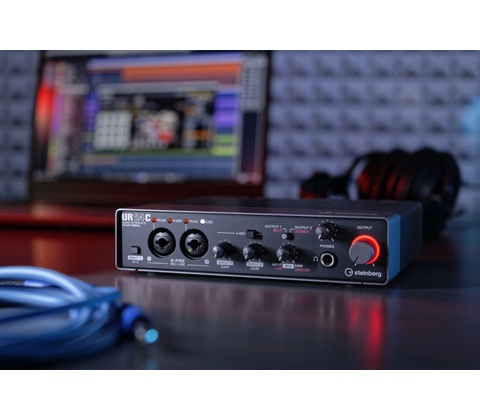

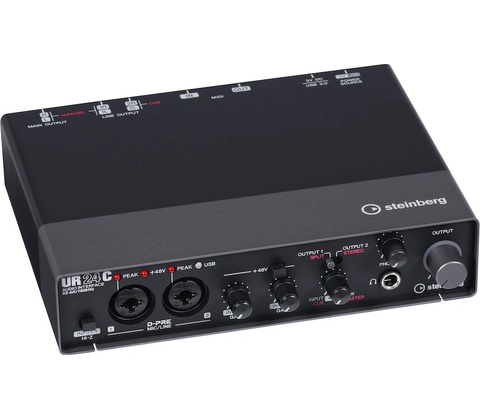

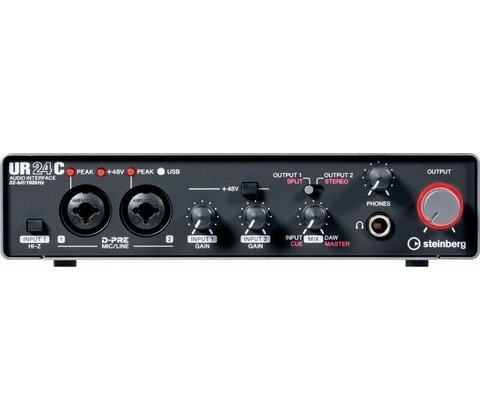

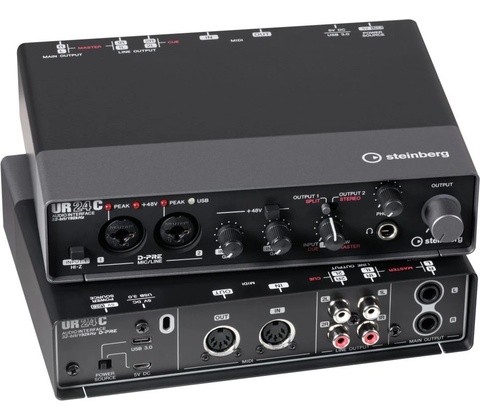

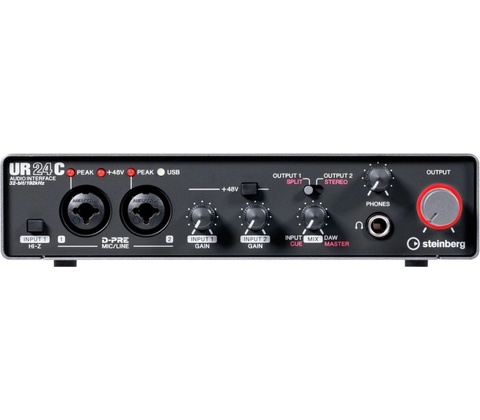

Steinberg UR24C

UR24CNahrávajte a skladajte hudbu v štúdiovej kvalite na vašom počítači alebo iPade pomocou robustného UR24C. Vďaka super rýchlemu USB 3.0, zabudovanému DSP, vynikajúcej kvalite zvuku a napájaniu zo zariadení vybavených USB 3.0 alebo USB-C, je UR24C plne mobilnou produkčnou platformou, kombinujúcou výber top komponentov s pokročilými možnosťami pripojenia a flexibilitou kombinácií vstupov a výstupov. Vlastnosti:32-bitové / 192 kHz audio rozhranie USB 3.0 s USB-C konektivitou2 D-PRE mikrofónové predzosilňovače triedy A podporujúce +48 V fantómové napájanie2 analógové XLR/TRS kombinované vstupy (Hi-Z prepínač na vstupe 2 pre elektrickú gitaru) a 2 TRS hlavné výstupyMonitorovanie bez oneskorenia cez DSP s efektom REV-X reverb, kanálový pás a Guitar Amp Classics (vrátane plug-in verzií VST 3 a AU), gombík na mix pre monitorovanie a prepínač monoNapájanie cez USB 3.0 (pre USB 2.0 je potrebný voliteľný napájací zdroj)Vstup a výstup MIDIRobustný kovový krytObsahuje verziu softvéru Cubase AI DAW na stiahnutie a Cubasis LE pre iPadEditovacia aplikácia dspMixFx pre Windows, MacOS a iOSKompatibilita naprieč platformami pre systémy Windows, MacOS a iOSUR22C / UR24C / UR44C / UR816C

Mac

PC  macOS 10.12 / 10.13 / 10.14

Windows 7 SP1 / 8.1 /10

Intel Core i-series multicore processor 2 GHz

Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor  2 GB RAM  1.2 GB free HD space, high-speed hard disk  1280 x 800 display resolution recommended

USB-C port or USB 2.0/3.0 port for connection of UR-C unit

CC Mode requires iOS 10 (or higher) on iOS devices*

Internet connection required for download, installation, activation, account setup and personal / product registration.  *CC Mode requires Apple Lightning to USB Camera Adapter / Lightning to USB 3 Camera Adapter (not included)

CUBASE AI/LE

Mac

PC  macOS 10.12 / 10.13 / 10.14  64-Bit Windows 7 / 8.x / 10  64-bit Intel or AMD multi-core processor (Intel i5 or faster recommended)  4 GB RAM (8 GB or more recommended)  30 GB free HD space  1440 x 900 display resolution (1920 x 1080 recommended)

Graphics card with DirectX 10 and WDDM 1.1 support (Windows only)

An internet connection is required for activation, account setup and personal/product registration.

Note: This software version does not support 32-bit plug-ins.

UR22C

UR24C

UR44C

UR816C

AXR4T

Connection Type

USB Type-C

USB Type-C

USB Type-C

USB Type-C

Thunderbolt 2

Design

Desktop (1/3 19", 1HU)

Desktop (1/2 19", 1HU)

Desktop (2/3 19", 1HU) 19" rack unit, 1 HU 19" rack unit, 1 HU

Casing

Full-metal casing

Full-metal casing

Full-metal casing

Full-metal casing

Full-metal casing

Power supply

USB 3.0 bus-powered, USB Type-C bus-powered, External USB 5 V AC adaptor (not included)

USB 3.0 bus-powered, USB Type-C bus-powered, External USB 5 V AC adaptor (not included)

USB Type-C bus-powered, External 12 V AC adaptor (Yamaha PA-150B)

External 16 V AC adaptor (Yamaha PA-300C)

External 24 V AC adaptor (Yamaha PA-700)

Specification

UR22C

UR24C

UR44C

UR816C

AXR4T

AD/DA 32 bit 32 bit  32 bit 32 bit 32 bit

Maximum sample rate 192 kHz 192 kHz  192 kHz 192 kHz 384 kHz

Dynamic range input 102 [dB]  102 [dB] 102 [dB] 106 [dB] 119 [dB]

Connectivity

UR22C  UR24C

UR44C

UR816C

AXR4T

Total number of Inputs 2  2 6 16 28

Total number of indiviudal outputs 2 4  4 16 24

Total number of Outputs 2  6 6 16 24

Microphone preamp

D-PRE

D-PRE

D-PRE

D-PRE

AXR Hybrid Pre with RND Silk

Microphone inputs 2  2 4 8 4

Inputs with line level 2  2 4 6 10

Inputs with HI-Z 1  1 2 2 2

Analoge Eingänge TRS 0  2 8

Analog input Combo 2 2  4 8 4

Analog output TRS 2  2 6 10 8

Phantom power 2  2 4 8 4

Headphone

With dedicated volume control  With dedicated volume control

With dedicated volume control

With dedicated volume control

With dedicated volume control

Headphones outputs 1 1  2 2 2

Digital In ADAT 0  1 2

Digital Out ADAT  0 1 2

Digital In S/PDIF Optical  0 1 2

Digital In AES/EBU RS422 0  1

Digital Out S/PDIF Optical  0 1 2

Digital Out AES/EBU RS422 0  1

• MIDI I/O
  •
  •

• • •

DSP-features

UR22C

UR24C

UR44C

UR816C

AXR4T

Monitoring

Latency free monitoring with FX  Latency free monitoring with FX

Latency free monitoring with FX

Latency free monitoring with FX

Latency free monitoring with FX

Onboard DSP

SSP 3  SSP 3

SSP 3

SSP 3

DSPX

True Integrated Monitoring with FX in Cubase •  • • • •

High-Pass filter •   • • •

REV-X Reverb •  • • • •

Sweet Spot Morphing Channel Strip •  • • • •

Dimensions

UR22C  UR24C

UR44C

UR816C

AXR4T

Weight 1000 g 1100 g  1500 g 2700 g 4600 g

Width 159 mm 198 mm  252 mm 446 mm 480 mm

Height 47 mm  47 mm 47 mm 46 mm 45 mm

Depth 159 mm 159 mm  159 mm 226 mm 378 mm
